Hexagon head fitted bolts for steel structures - DIN 7968
You are here
Home
»
Screws
»
Hexagon
»
head fitted bolts for steel structures
Catalogue
Screws
Nuts
Washers
Wood screws – Nails
Pins, split pins and keys
Rivets
Fixings
Railway superstructure
Standard
ČSN
ISO
DIN
PN/M
Other
Shape
7968
Basic materials
Steel
Steel
5.6
8.8
Basic coatings
None
Zinc
Hot zinc
-
Vz
tZn

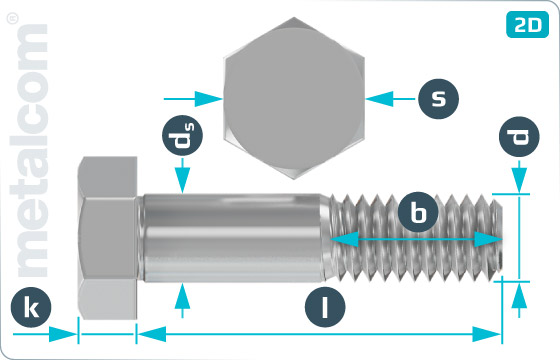

Dimensions (see 2D picture)
d
l
ds
b
k
s
Packing
M 12
35
13
18,5
8
19
1
M 16
35
17
22
10
24
1
M 20
40
21
26
13
30
1
M 22
40
23
28
14
32
1
M 24
45
25
29,5
15
36
1
M 27
60
28
32,5
17
41
1
M 30
80
31
35
19
46
1
Click on the field in the first column you expand all measure
